Vacuum Brazed Diamond Blade

Name: Vacuum Brazed Diamond Blade
Brand: Hebei Buteo International Co., Ltd.
Price: 100 USD

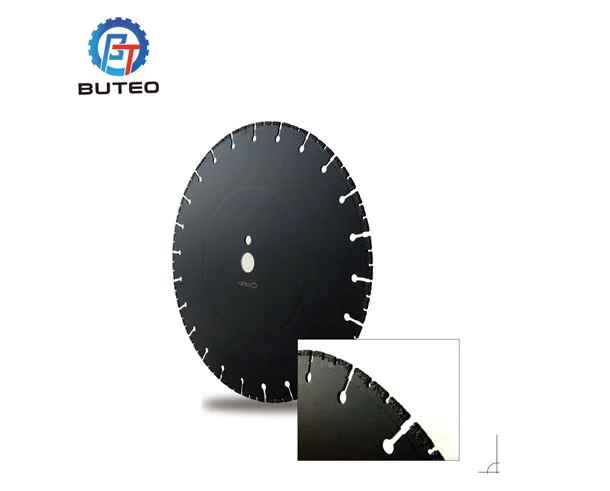

A vacuum brazed diamond blade is a cutting tool with diamond particles permanently bonded to its edges using a vacuum brazing process. This blade offers exceptional durability and cutting speed, making it ideal for cutting various materials, including stone, concrete, and metals. Our vacuum brazed diamond blades ensure precise and efficient cuts in demanding applications.

Specification of Vacuum Brazed Diamond Blade

CODE NO.	Diameter(mm)			Segment Thickness
	inch		mm
BT-TECH-V	12”	300		3.0
BT-TECH-V	14”	350		3.2
BT-TECH-V	16”	400		3.5
BT-TECH-V	18”	450		4.0
BT-TECH-V	20”	500		5.0
BT-TECH-V	24”	600		5.0
BT-TECH-V	32”	800		5.0

Objects That Vacuum Brazed Diamond Blade Can Cut

· Stone: such as marble, granite, ceramic tiles, sapphire and other hard stones. The vacuum brazed diamond blade can easily meet the cutting needs of these materials and ensure the flatness and accuracy of the cutting surface.

· Concrete and building materials: vacuum brazed diamond grinding wheel is also commonly used to cut concrete containing steel bars, stone curtain walls, stone composite panels and other building materials to meet the construction industry's demand for high-quality cutting.

· Metal materials: vacuum brazed diamond blade can cut a variety of metal materials, such as steel, cast iron, alloy steel, non-ferrous metals, etc.

· Non-metal composite materials: such as fiberglass, plastic, PVC pipes, etc. The sharpness and wear resistance of the vacuum brazed diamond grinding wheel make it an ideal choice for cutting these composite materials.

· Various other materials: such as glass, ceramics, safety glass, etc. These materials are usually hard and wear-resistant, so they need to be cut with a vacuum brazed diamond blade.

Benefits of Using Vacuum Brazed Diamond Blade

1. Versatile Cutting: Vacuum brazed diamond blades can cut through a wide range of materials, including stone, concrete, ceramics, and even metals.

2. Long Lifespan: They have a longer lifespan compared to conventional blades due to the durable diamond particles.

3. Clean Cuts: These blades produce clean and precise cuts with minimal chipping or breakage.

4. Efficiency: Vacuum brazed diamond blade often works faster, reducing cutting time and labor costs.

5. Reduced Heat Buildup: The vacuum brazing process disperses heat efficiently, minimizing the risk of overheating and warping of the blade.

Guidance on Safe Operation of Vacuum Brazed Diamond Grinding Wheel

Pre-operation inspection

Before using the vacuum brazed diamond grinding wheel, be sure to perform a safety check to ensure that the saw blade has no cracks, diamond particles have not fallen off, and that it is firmly installed.

Personal protection

To ensure the safety of the operator, please wear protective glasses, earplugs, dust masks and protective gloves. Dust masks are particularly important when cutting materials that generate a lot of dust, such as stone and concrete.

Speed matching

Please make sure that the speed of the vacuum brazed diamond grinding wheel matches the maximum speed of the cutting machine to avoid overheating and damage to the saw blade.

Cooling and lubrication

During the cutting process, proper cooling and lubrication can extend the service life of the grinding wheel and reduce safety risks. We recommend using a dedicated coolant or water for cooling and ensure that the coolant can fully cover the saw blade.
