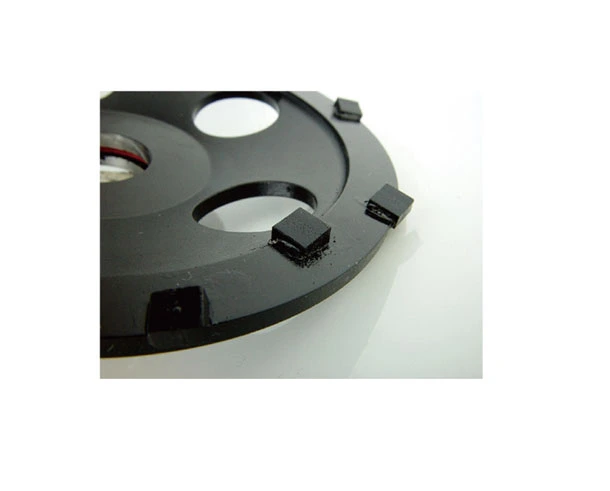

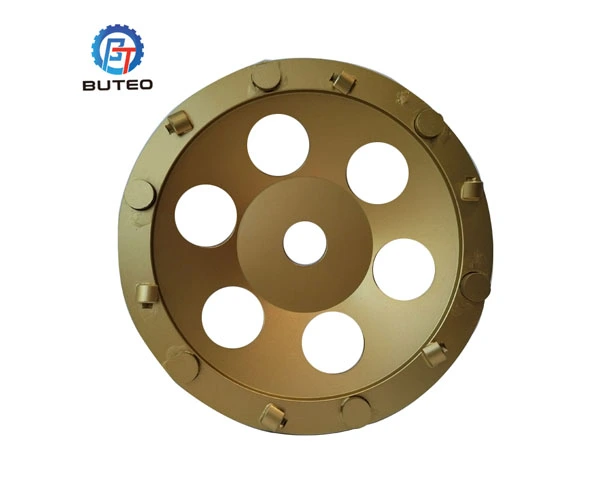

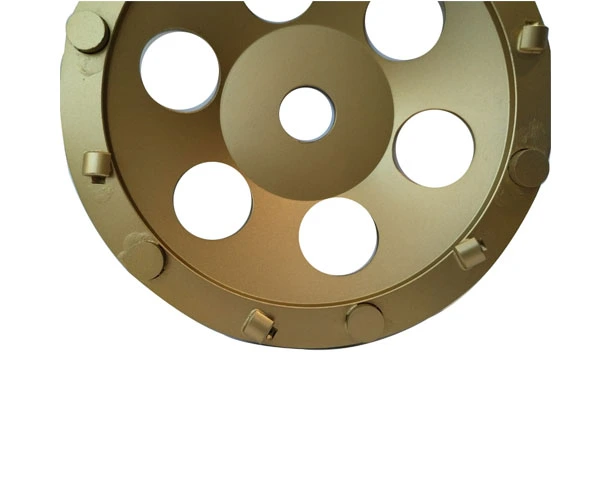

PCD Grinding Wheel

Name: PCD Grinding Wheel
Brand: Hebei Buteo International Co., Ltd.
Price: 100 USD

A PCD (Polycrystalline Diamond) grinding wheel is a cutting tool equipped with synthetic diamond particles. PCD grinding wheel excels in machining and grinding abrasive and hard materials, including composites, concrete, and various non-ferrous metals, offering high durability and precision in industrial applications. As a pcd cup grinding wheel supplier, Buteo not only provides high-quality products with stable quality, but more importantly, it can provide efficient grinding solutions according to the customer's processing conditions. We have rich experience in pcd cup wheel.

Specification of PCD Grinding Wheel

CODE NO.	Diameter(mm)	Height(mm)	Seg.No	Bore
BT-CW-PCD	100	1.5	6	22.2	m14	5/8’’-11
BT-CW-PCD	125	1.5	4,5,12	22.2	m14	5/8’’-11
BT-CW-PCD	180	1.5	6,8,12,24	22.2	m14	5/8’’-11

CODE NO.	Diameter(mm)	Height(mm)	Seg.No	Bore
BT-CW-PCDT	115	8	4	22.2
BT-CW-PCDT	125	8	6	22.2
BT-CW-PCDT	150	8	6	19
BT-CW-PCDT	180	8	6	22.2

Advantages of PCD Cup Grinding Wheel

Our pcd grinding wheel has stable quality, good self-sharpening, excellent edge quality, high cost performance, and fine grinding / super fine grinding products are comparable to high-end products with the same particle size. Ring width support from 1mm-25mm can be processed. The particle size is complete from 80#-10000#. Our pcd cup grinding wheel is used for a variety of tool grinding machines and tool grinders.
Buteo can provide more optimized grinding solutions according to the tools and material products processed by customers. The pcd cup wheel has stable quality and high cost performance.

Differences Between PCD Grinding Wheel and Diamond Cup Grinding Wheel

PCD grinding wheels and diamond cup grinding wheels are both abrasive tools, but they have distinct differences:

1. Abrasive Material:

PCD Grinding Wheel: Uses synthetic polycrystalline diamond (PCD) for cutting and grinding.

Diamond Cup Grinding Wheel: Utilizes natural or synthetic diamonds embedded in metal or resin bonds.

2. Applications:

PCD Grinding Wheel: Primarily used for machining and grinding extremely hard and abrasive materials like composites, concrete, and non-ferrous metals.

Diamond Cup Grinding Wheel: Suitable for a broader range of materials, including concrete, stone, masonry, and metal.

3. Material Removal Rate:

PCD Grinding Wheel: Offers a high material removal rate due to the extreme hardness and durability of PCD.

Diamond Cup Grinding Wheel: Typically provides a good material removal rate but may be slightly slower than PCD for some materials.

4. Cost and Lifespan:

PCD Grinding Wheel: Generally more expensive upfront but can have a longer lifespan and lower overall cost for specific applications due to extended durability.

Diamond Cup Grinding Wheel: More cost-effective for general-purpose grinding tasks but may have a shorter lifespan when used on extremely hard materials.
