Diamond Gang Saw Segments

Name: Diamond Gang Saw Segments
Brand: Hebei Buteo International Co., Ltd.

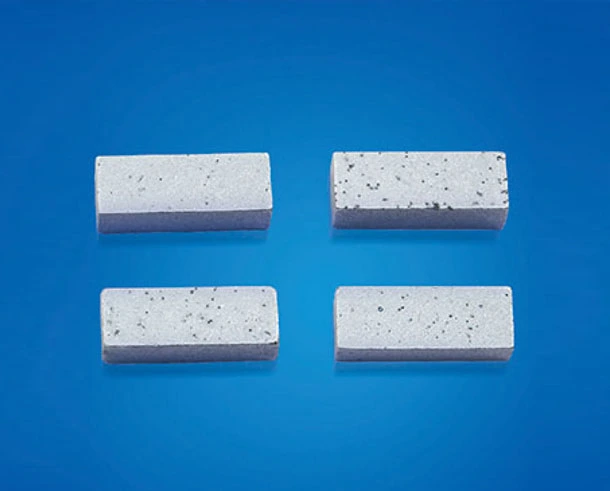

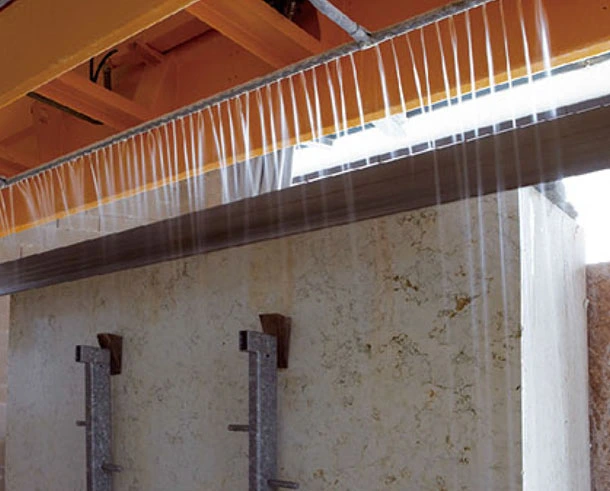

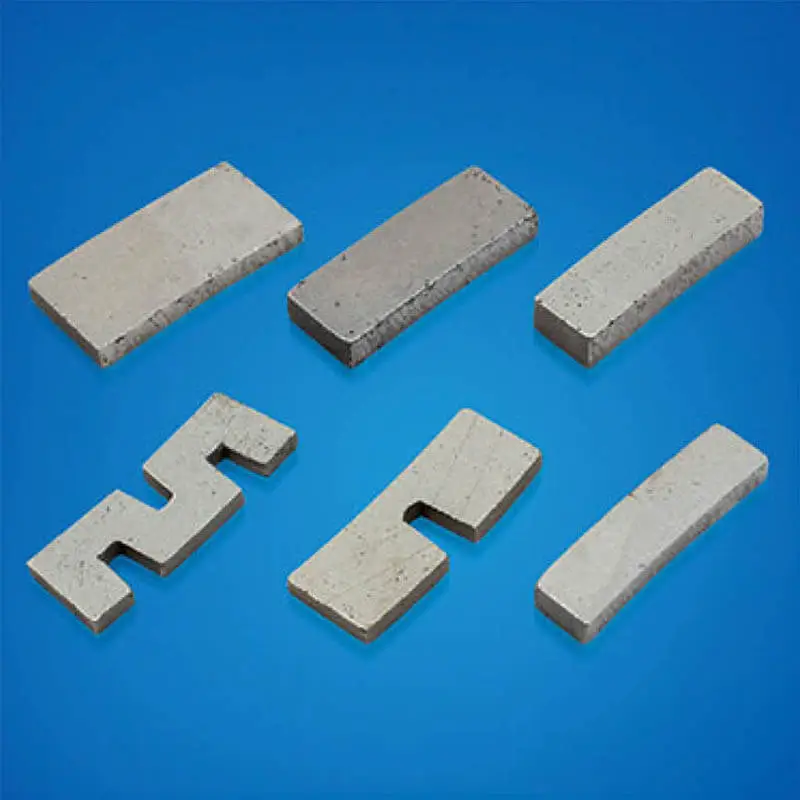

Diamond gang saw segments are cutting tools used in stone processing. They consist of synthetic or natural diamond particles and are affixed to a gang saw blade. These segments efficiently cut large blocks of stone or marble in the stone industry, offering precision, speed, and durability.

Specification of Diamond Gang Saw Segments

CODE NO.	Length(mm)	Thinkness(mm)	Height(mm)	Segment Length(mm)	Segment Thicknes	Segment Height	Teeth No.
BT-DS-N	2000	2.0/2.5/3.0/3.5	180	20	3.5/4.0	7.0/8.0	14-16
BT-DS-N	2500	2.0/2.5/3.0/3.5	180	20	3.5/4.0	7.0/8.0/10	17-19
BT-DS-N	2700	2.0/2.5/3.0/3.5	180	20	4.0/4.5/5.0	8.0/10	20-22
BT-DS-N	3000	2.0/2.5/3.0/3.5	180	20	4.5/5.0	8.0/10	21-23
BT-DS-N	3100	2.0/2.5/3.0/3.5	180	20	4.5/5.0	8.0/10	26-28
BT-DS-N	3500	2.0/2.5/3.0/3.5	180	20	4.5/5.0	8.0/10	27-29
BT-DS-N	3950	2.0/2.5/3.0/3.5	180	20	4.5/5.0	8.0/12	30-32
BT-DS-N	4300	2.0/2.5/3.0/3.5	180	24	5.0	8.0/12	32-35
BT-DS-N	4500	2.0/2.5/3.0/3.5	180	24	5.0	8.0/12	34-37

Features of Diamond Gang Saw Segments

1. High Cutting Efficiency: These segments are designed to efficiently cut through large blocks of stone or marble, ensuring a high level of productivity.

2. Durable Diamond Bond: They have a robust diamond bond that enhances the longevity of the segments, reducing the need for frequent replacements.

3. Consistent Performance: Diamond segments maintain consistent cutting performance throughout their lifespan, resulting in uniform and precise cuts.

4. Versatile Applications: They are suitable for a variety of stone types, including granite, marble, limestone, and more, making them versatile tools in the stone processing industry.

5. Customized Design: Manufacturers offer various segment designs and specifications to cater to specific cutting requirements, ensuring optimal performance for different stone materials and applications.
