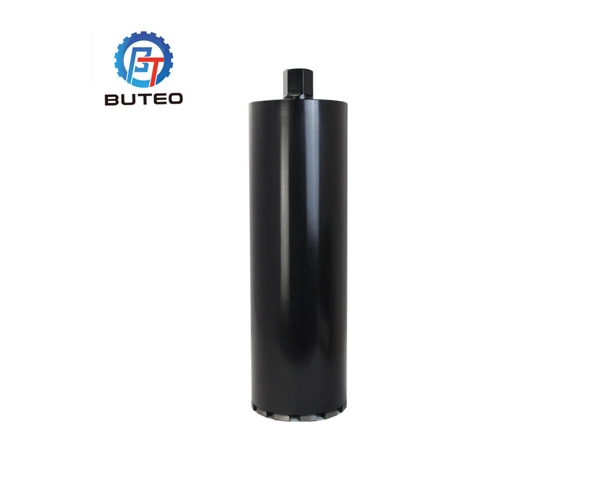

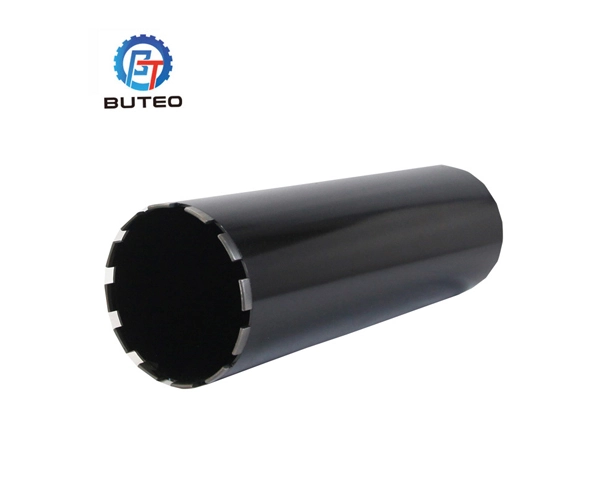

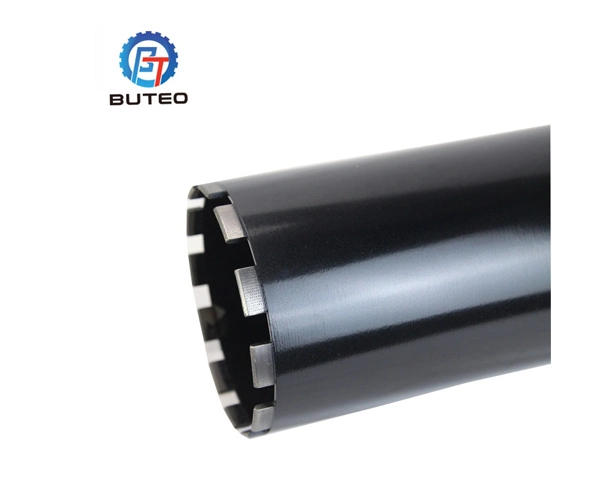

Concrete Core Bits

Specification of Concrete Core Bit

Advantages of Buteo Concrete Core Drill Bit

• Excellent cutting effect Buteo concrete core bit uses high-quality diamond particles to ensure extremely high precision and efficiency during the cutting process. Whether it is hard concrete or reinforced concrete, it can easily cope with it, which helps to improve work efficiency.

• Durable quality After strict manufacturing process and quality inspection, Buteo concrete coring drills for sale have extremely high wear resistance and service life. High-strength materials and sophisticated design help reduce replacement frequency and save costs.

• Stable performance Buteo 4'' concrete core bit performs well during use and can maintain a stable cutting speed and effect. Whether it is long-term continuous work or high-intensity operation, it can maintain consistent performance, which helps to ensure the smooth progress of the project.

• Comprehensive quality assurance Buteo core drill bit factory provides comprehensive quality assurance and after-sales service to ensure that every masonry core drill bit meets the highest standards. Professional technical support and service team can help solve any problems encountered by customers during use and provide a worry-free use experience.

Core Drill vs Hammer Drill

▶ Main functions

Core drill: mainly used for drilling holes and taking out the core in the hole.

Hammer drill: in addition to drilling holes, it also has a hammering function, suitable for occasions that require strong impact force, such as breaking hard materials.

▶ Usage scenarios

Core drills such as concrete core bits are suitable for occasions where the complete hole core needs to be taken out, such as the foundation hole for installing large equipment.

Hammer drill: suitable for occasions where hard materials need to be broken or deep drilling is required in construction, home repair and decoration work.

▶ Working principle

Core drill: the motor drives the transmission gear to increase the torque of the drill bit to achieve drilling.

Hammer drill: the bottom motor is used to drive two sets of gear structures, one set to achieve drilling, and the other set to drive the piston, generating a strong impact force to achieve the hammering effect.

Why Do Many Companies Choose Our Concrete Core Drill Bits?

• We use high-quality diamond particles to manufacture core drill bit concrete, which has high purity and transparency, and less impurities. These characteristics make the diamond particles sharper and more durable during the cutting process.

• High-quality diamond particles are uniform in size, which can ensure that the concrete diamond core drill bit maintains consistent performance during the cutting process. The uniformity of particle size helps to reduce vibration and irregular wear during cutting, thereby improving cutting efficiency and precision.

• High-quality diamond particles should have extremely high hardness and wear resistance. This allows the concrete core bit to maintain a sharp cutting edge and extend the life of the drill bit when cutting hard materials such as concrete and reinforced concrete.

• High-quality diamond particles usually have regular shapes, such as cubes or octahedrons. These shapes help provide a more uniform grinding effect during the cutting process, reducing irregular wear and breakage.

• These high-quality diamond particles have good compatibility with the binders (such as metal or resin) of our 2-6 inch concrete core drill bit. This ensures that the diamond particles can be firmly embedded in the drill bit and are not easy to fall off, thereby improving the overall performance and durability of the drill bit.

How to Use a Core Drill Bit?

Drilling operation:

• Feed speed: The feed speed is generally based on experience. In terms of numerical value, it is generally 0.08-0.12mm/revolution, or 0.6-1.0mm/second. Feed speed is a key factor in drilling. Different feed amounts can form different iron chips, and different iron chips will change the chip removal performance.

• Positioning: Chisel a certain point in the center of the location where the hole needs to be drilled or draw a "cross" line with an alloy needle to ensure the accuracy of the drilling position.

• Start drilling: Adjust the appropriate speed, make sure the bottom of the magnetic base of the drill is clean before starting the machine, turn on the magnetic base switch first and then turn on the motor switch, turn on the coolant switch while the motor is running, and when the drill bit contacts the steel plate, feed slowly first, drill about 1-2mm, and then feed at normal speed.

• End of drilling: Turn off the motor and wait for the spindle to stop rotating, use an iron hook to remove the iron chips wrapped around the drill body, and then continue the operation.
