Marble Cutting Segment

Name: Marble Cutting Segment
Brand: Hebei Buteo International Co., Ltd.
Price: 100 USD

Marble cutting segments are specialized cutting tool used in diamond saw blades. They consist of synthetic or natural diamond particles embedded in a metal or resin matrix. These marble segments offer precise and efficient cutting of marble slabs, tiles, and countertops in stone fabrication and installation applications.

Specification of Marble Cutting Segment

CODE NO.	Diameter(mm)		Segment Length(mm)	Segment thinkness(mm)	Segment Height(mm)	Teeth No.
CODE NO.	inch	mm	Segment Length(mm)	Segment thinkness(mm)	Segment Height(mm)	Teeth No.
BT-DS-M	10”	250	40	3.0	10	18
BT-DS-M	12”	300	40	3.0	10	22
BT-DS-M	14”	350	40	3.2	10	25
BT-DS-M	16”	400	40	3.4	10	29
BT-DS-M	18”	450	40	4.0	10	32
BT-DS-M	20”	500	40	4.2	10	36
BT-DS-M	24”	600	40	4.8	10	42
BT-DS-M	28”	700	40	5.2	10	42
BT-DS-M	32”	800	40	5.6	10	57
BT-DS-M	36”	900	24	7.0	10	64
BT-DS-M	40”	1000	24	7.0	10	70
BT-DS-M	48”	1200	24	8.0	10	80
BT-DS-M	56”	1400	24	8.5	10	92
BT-DS-M	64”	1600	24	9.0	10	108
BT-DS-M	72”	1800	24	9.5	10	120
BT-DS-M	80”	2000	24	9.5	10	128
BT-DS-M	88”	2200	24	10.5	10	132
BT-DS-M	100”	2500	24	11.5	10	140
BT-DS-M	120”	3000	24	12.5	10	160

Highlights of Our Marble Cutting Segment

1. [Gradient fetal formula] -The sharpness of the cutting head is increased by 50%.

Through the progressive distribution structure of copper, iron and cobalt alloy, the tire wear rate (0.08mm/h) is dynamically balanced with the consumption of diamond 1:0.8, and the sharpness is maintained continuously when cutting white marble, and the duration of a single cut is extended to 12 hours.

2. [Silver welding enhancement process] -Welding strength up to 180MPa.

Using high-temperature silver welding (600-700℃ melting point), this enhances the bonding strength between the marble segment and steel core by 30%—eliminating breakage risks under heavy vibration. Ideal for large-scale marble cutting with 3000mm+ blades in continuous operation.

3. [environmental protection low dust production] -metal dust emission is less than 2mg/m³.

Through 98% spherical pre-alloyed powder, the dust concentration of the pressing process is reduced by 60%, which meets the ISO 14001 environmental certification standard.

4 [Customized stone service] -Supports more than 20 types of marble matching

According to the type of stone cut by customers, we provide customized formula schemes with diamond concentration (25-45%) and body hardness (HRB 85-100).

Buteo Marble Segment Is Well Suited for Medium to High Hardness Stones

Whether it is granite, marble or other medium to high hardness stones, our marble segments can provide precise and smooth cutting results, greatly reducing the time and cost of subsequent processing. Even better, our marble segments are very scientifically designed, which can effectively reduce vibration and noise during cutting, and improve the comfort and safety of operation. Our marble segments also have excellent heat dissipation performance, which can maintain low temperature even during long cutting processes and extend service life. We provide marble segments in various specifications and models to meet the specific needs of different customers.

What Do Marble Cutting Segment Have in Common with Diamond Segments for Granite Cutting？

Diamond segments for both marble and granite cutting share several common characteristics:

1. Diamond Particles: Both types of segments contain synthetic or natural diamond particles, which are extremely hard and durable, making them suitable for cutting hard stones like marble and granite.

2. Precision Cutting: Diamond core bit segments for both materials are designed to provide clean and precise cuts, ensuring high-quality results in stone fabrication.

3. Efficient Material Removal: They efficiently remove material, resulting in faster cutting speeds and increased productivity.

4. Longevity: Diamond segments in both cases have a longer lifespan compared to conventional cutting tools, reducing replacement costs and downtime.

5. Application-Specific Variations: While they share common traits, there are variations in bond hardness and segment design to cater to the different characteristics of marble and granite, such as hardness and abrasiveness. These variations optimize cutting performance for each material.

Our Marble Cutting Segment Offers a Wide Range of Applications:

Precise applications in architectural decoration: Our marble cutting segment demonstrates outstanding performance in the field of architectural decoration. Whether it is used to cut marble floors, walls or countertops, our products provide extremely high cutting accuracy and smoothness.
Delicate performance in carving art: In the field of carving art, our marble segment also performs well. Artists and craftsmen can rely on our products for fine carving and processing to create exquisite sculptures and works of art. Our cutting segments are capable of handling complex details
Efficient applications in industrial manufacturing: Our marble segment also plays an important role in industrial manufacturing. By reducing cutting time and improving cutting accuracy, we help companies significantly improve production efficiency and reduce production costs.

Supports Customization of Marble Cutting Segment Size

Size customization:

If you need to cut large pieces of granite, we can provide large marble cutting segments with a diameter of 350mm; if you need to do fine carving work, we can also provide small marble segments with a diameter of 100mm.

Shape customization:

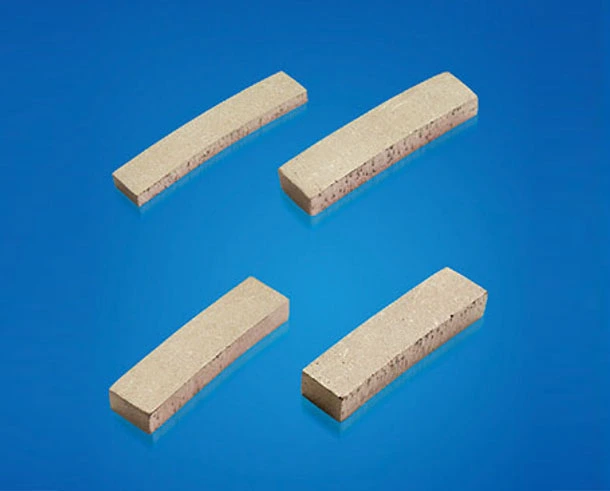

For projects that require straight-line cutting, we can provide standard rectangular marble cutting segments; for projects that require cutting curves or complex shapes, we can provide curved or trapezoidal marble segments.

Diamond particle density customization:

If you need to cut very hard stones, such as granite, we can provide marble cutting segments with high-density diamond particles; if you need to cut softer stones, such as marble, we can provide marble segments with low-density diamond particles.
